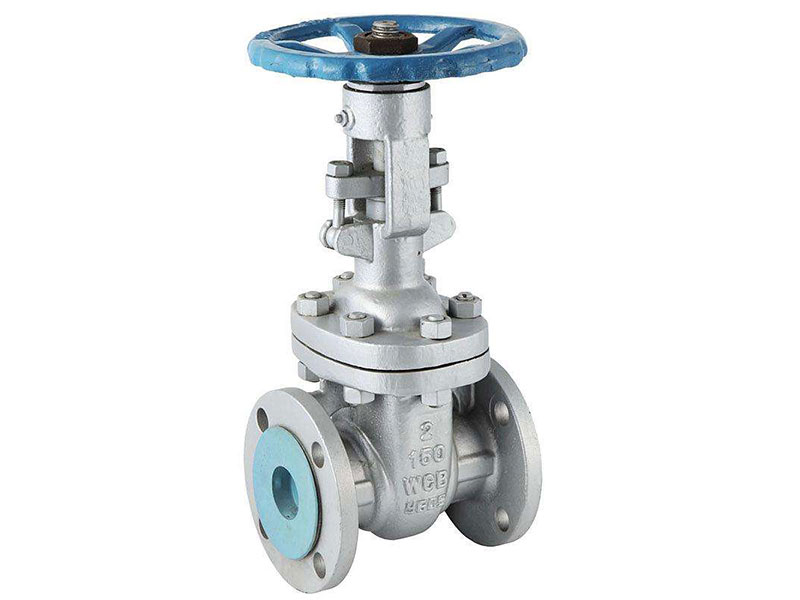

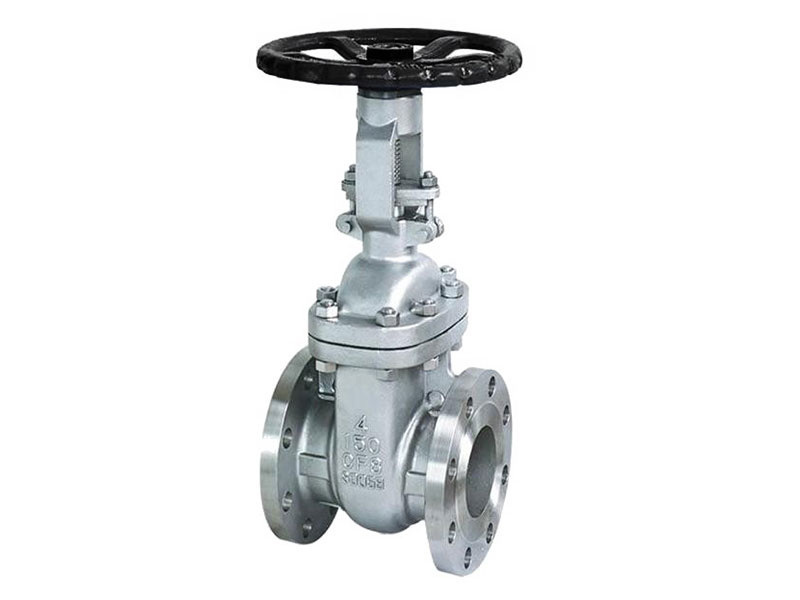

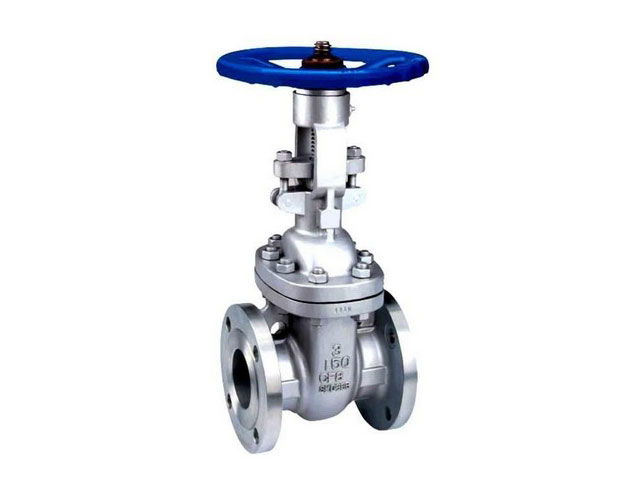

API 600 Wedge Gate Valve

Technical Specifications
- Design Standard: API 600 / API 603
- Face-to-Face Standard: ASME B16.10 / ANSI B16.10 / MSS-SP-44
- End Connections: ASME B16.5 / ASME B16.47 / ASME B16.25 / ASME B16.11 / ASME B1.20.1
- Testing & Inspection Standard: API 598 / API 600 / ISO 5208
- Size Range: 1/2" to 60"
- Pressure Rating: Class 150 to Class 2500
- Operating Temperature: -29℃ to +560℃

Key Advantages

1. good Flow Control with smallest Resistance
One of the primary advantages of the API 600 Wedge Gate Valve is its low flow resistance. Unlike other valve types, it provides a straight-through passage when fully open, reducing pressure loss and allowing efficient fluid transfer. This feature is particularly beneficial for systems that require to a certain extent flow capacity with smallest energy loss.

2. Reliable Sealing for Leak-Free Performance
The API 600 Wedge Gate Valve offers highly reliable sealing, preventing leakage and ensuring safety in critical operations. The flexible or solid wedge design enhances contact with the seat, providing a secure shut-off even under to the limit conditions. The sealing performance meets API 598 standards, ensuring dependable operation in high-pressure systems.

3. High Durability and Long Service Life
Manufactured from high quality materials, including carbon steel, stainless steel, alloy steel, Monel, Duplex, and Inconel, the API 600 Wedge Gate Valve is built for durability. Its sturdy construction allows it to withstand harsh environments, including corrosive and high-temperature conditions, making it a cost-effective long-term investment.

4. Versatile End Connections and Pressure Ratings
The API 600 Wedge Gate Valve is available in a variety of end connections, such as RF, RTJ, BW, SW, and NPT, making it adaptable to different piping systems. Additionally, with pressure ratings ranging from Class 150 to Class 2500, this valve can be utilized in a wide spectrum of applications requiring varying pressure demands.

Applications
The API 600 Wedge Gate Valve is widely used in industries requiring secure and efficient fluid control. Some of its key applications include:
- Oil and Gas: Suitable for upstream, midstream, and downstream operations, ensuring safe and efficient flow regulation.
- Chemical Processing: Handles aggressive and corrosive media with high resistance to wear and tear.
- Power Plants: Withstands high temperatures and pressures, making it ideal for steam and water flow control.
- Water Treatment: Ensures reliable isolation of flow in large-scale water distribution systems.

Design Features
- Bolted Bonnet or Pressure Self-Sealing Bonnet for good strength and reliability.
- Flexible or Solid Wedge options for enhanced sealing performance.
- Outside Screw and Yoke (OS&Y) Rising Stem design for ease of maintenance and visual position indication.
- Small Force Requirement for smooth opening and closing operation.
- Corrosion and Wear Resistance due to high-quality material selection.

The API 600 Wedge Gate Valve is a dependable and efficient solution for industries requiring precise flow control and reliable sealing. Its low flow resistance, high durability, and versatile configuration make it ideal choice for demanding applications. With compliance to international standards and robust construction, this gate valve ensures long-lasting performance, making it a valuable asset for industrial operations.
